Resource Estimate

Print Friendly Version of this pagePrint Get a PDF version of this webpagePDF

On July 24, 2014 the Company announced a significantly expanded and upgraded 43-101 Mineral Resource Estimate for Wellgreen, highlighted by:

    • Measured & Indicated (“M&I”) Mineral Resources increased to 330 million tonnes at 1.67 g/t platinum equivalent (“Pt Eq.”) or 0.44% nickel equivalent (“Ni Eq.”) at a 0.57 g/t Pt Eq. cut-off or 0.15% Ni Eq. cut‐off in a pit constrained resource containing 5.53 million ounces of 3E (platinum +palladium +gold) with 1,894 million pounds of nickel and 1,021 million pounds of copper (See detailed breakdown in tables below).
    • Inferred Mineral Resource increased to 846 million tonnes at 1.57 g/t Pt Eq. or 0.41% Ni Eq. at a 0.57 g/t Pt Eq. cut-off or 0.15% Ni Eq. cut‐off in a pit constrained resource containing 13.8 million ounces of 3E (platinum +palladium +gold) with 4,431 million pounds of nickel and 2,595 million pounds of copper.
    • Higher Grade Measured & Indicated (“M&I”) Mineral Resource of 72 million tonnes at 2.49 g/t Pt Eq. or 0.65% Ni Eq. at a 1.9 g/t Pt Eq. cut-off or 0.50% Ni Eq. cut‐off containing 2.13 million ounces of 3E (platinum +palladium +gold) with 527 million pounds of nickel and 462 million pounds of copper.
    • Higher Grade Inferred Mineral Resource of 174 million tonnes at 2.41 g/t Pt Eq or 0.63% Ni Eq at a 1.9 g/t Pt Eq cut-off or 0.50% Ni Eq. cut‐off containing 5.06 million ounces of 3E (platinum +palladium +gold) with 1,182 million pounds of nickel and 1,153 million pounds copper.

Mineral resource update was prepared in accordance with the guidelines of National Instrument 43-101 by independent Qualified Person Ron Simpson, P.Geo., of GeoSim Services Inc. and John Sagman, P.Eng., Wellgreen Platinum’s Senior VP & COO and a Qualified Person, with an effective date of July 23, 2014.

Wellgreen 2014 Mineral Resource Technical Report



Mineral Resource Estimate by Category - At a 0.57 g/t Pt Eq. or 0.15% Ni Eq. cut-off (Base Case)
Category
Tonnes
(000s)
3E
(g/t)
Pt
(g/t)
Pd
(g/t)
Au
(g/t)
Ni
(%)
Cu
(%)
Co
(%)
Pt Eq.
(g/t)
Ni Eq.
(%)
Measured
92,293
0.550
0.252
0.246
0.052
0.260
0.155
0.015
1.713
0.449
Indicated
237,276
0.511
0.231
0.238
0.042
0.261
0.135
0.015
1.656
0.434
Total M&I
329,569
0.522
0.237
0.240
0.045
0.261
0.141
0.015
1.672
0.438
Inferred
846,389
0.507
0.234
0.226
0.047
0.237
0.139
0.015
1.571
0.412



Contained Metals by Category - At a 0.57 g/t Pt Eq. or 0.15% Ni Eq. cut-off (Base Case)
Metal
Measured
Resource
Indicated
Resource
Total M&I
Resource
Inferred
Resource
Platinum (000oz)
748
1,760
2,508
6,375
Palladium (000 oz)
730
1,817
2,547
6,137
Gold (000 oz)
154
322
476
1,275
Total 3E (000 oz)
1,631
3,900
5,531
13,787
Nickel (M lbs)
528
1,366
1,894
4,431
Copper (M lbs)
315
706
1,021
2,595
Cobalt (M lbs)
31
79
110
275



Mineral Resource Estimate by Category - At a 1.9 g/t Pt Eq. or 0.50% Ni Eq. cut-off
Category
Tonnes
(000s)
3E
(g/t)
Pt
(g/t)
Pd
(g/t)
Au
(g/t)
Ni
(%)
Cu
(%)
Co
(%)
Pt Eq.
(g/t)
Ni Eq.
(%)
Measured
21,854
0.923
0.454
0.366
0.103
0.326
0.301
0.019
2.492
0.653
Indicated
50,264
0.919
0.455
0.373
0.090
0.334
0.286
0.019
2.493
0.653
Total M&I
72,117
0.920
0.455
0.371
0.094
0.332
0.291
0.019
2.493
0.653
Inferred
173,684
0.906
0.456
0.352
0.098
0.309
0.301
0.018
2.410
0.631



Contained Metals by Category - At a 1.9 g/t Pt Eq. or 0.50% Ni Eq. cut-off
Metal
Measured
Resource
Indicated
Resource
Total M&I
Resource
Inferred
Resource
Platinum (000oz)
319
736
1,054
2,549
Palladium (000 oz)
257
603
860
1,965
Gold (000 oz)
73
146
219
548
Total 3E (000 oz)
648
1,484
2,133
5,061
Nickel (M lbs)
157
370
527
1,182
Copper (M lbs)
145
317
462
1,153
Cobalt (M lbs)
9
21
30
68

Notes:

  1. Measured Resources used 50 metre drill spacing. Indicated Resources used 50 metre drill spacing for massive sulphide and gabbro domains, and 100 metre drill spacing for clinopyroxenite and peridotite domains.
  2. Nickel equivalent (Ni Eq. %) and platinum equivalent (Pt Eq. g/t) calculations reflect total gross metal content using US$ of $8.35/lb Ni, $3.00/lb Cu, $13.00/lb Co, $1,500/oz Pt, $750/oz Pd and $1,250/oz Au and have not been adjusted to reflect metallurgical recoveries.
  3. Pit constrained grade shells were determined using the following assumptions: metal prices in Note 2 above ; a 45 degree pit slope; assumed metallurgical recoveries of 70% for Ni, 90% for Cu, 64% for Co, 60% for Pt, 70% for Pd and 75% for Au; an exchange rate of USD$1.00=CAD$0.91; and mining costs of $2.00 per tonne, processing costs of $12.91 per tonne, and general & administrative charges of $1.10 per tonne (all expressed in Canadian dollars).
  4. Totals may not add due to rounding.
  5. Mineral Resources are not Mineral Reserves and do not have demonstrated economic viability.



NS Sensitivity at Different Cut-off Grades

February 2015 Updated Cross Sections

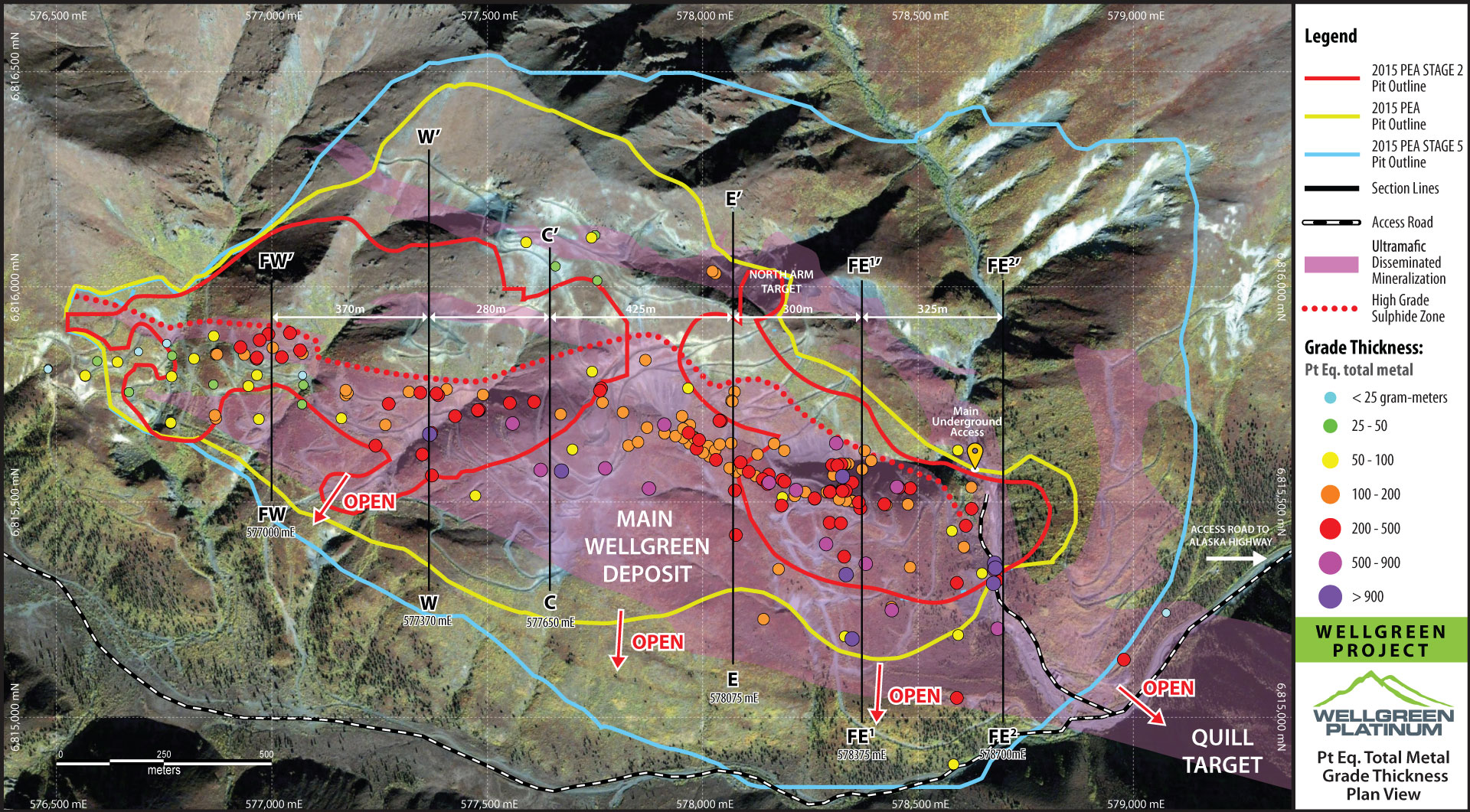

Wellgreen Plan View

Wellgreen Plan View

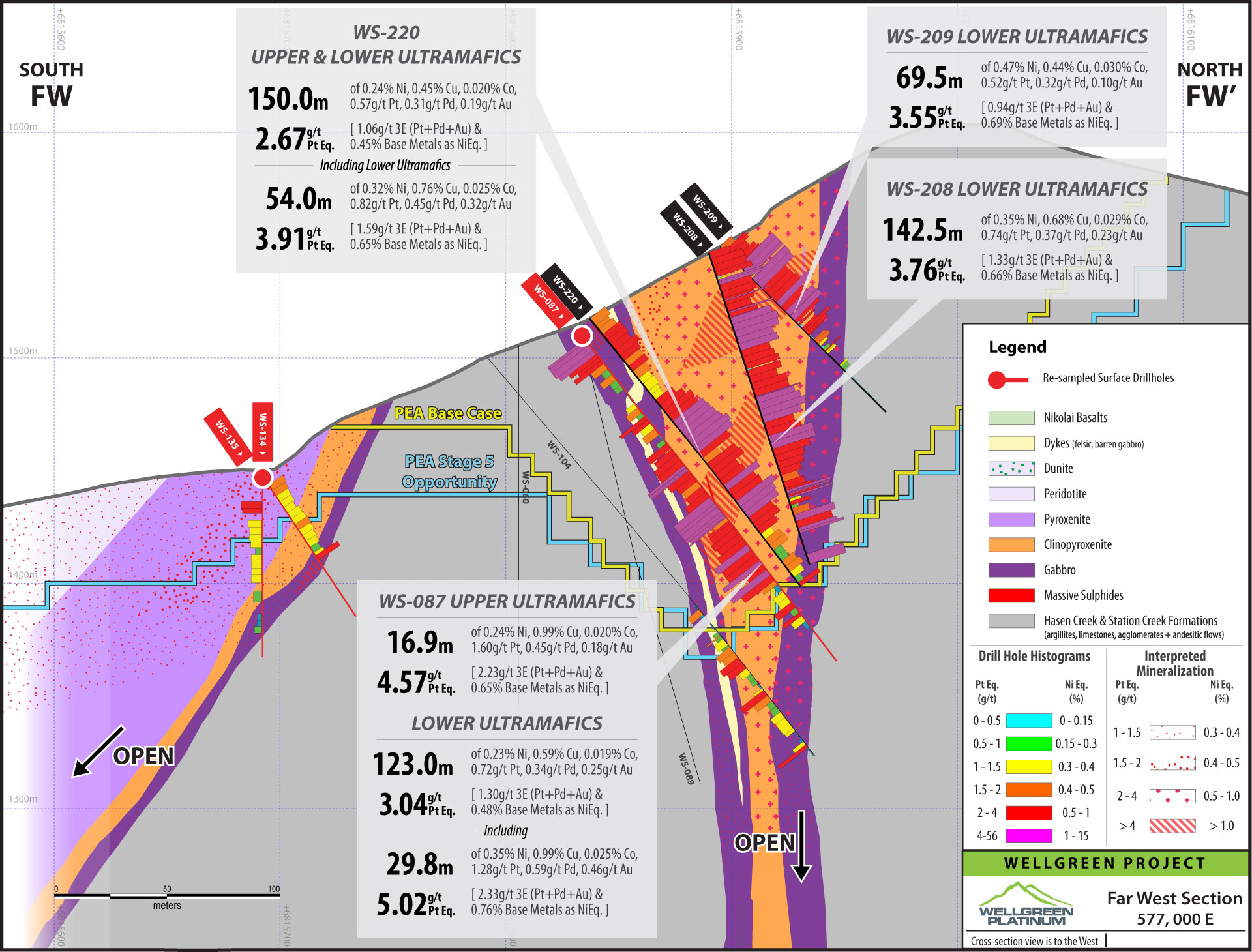

Farwest 577000e

Farwest 577000e

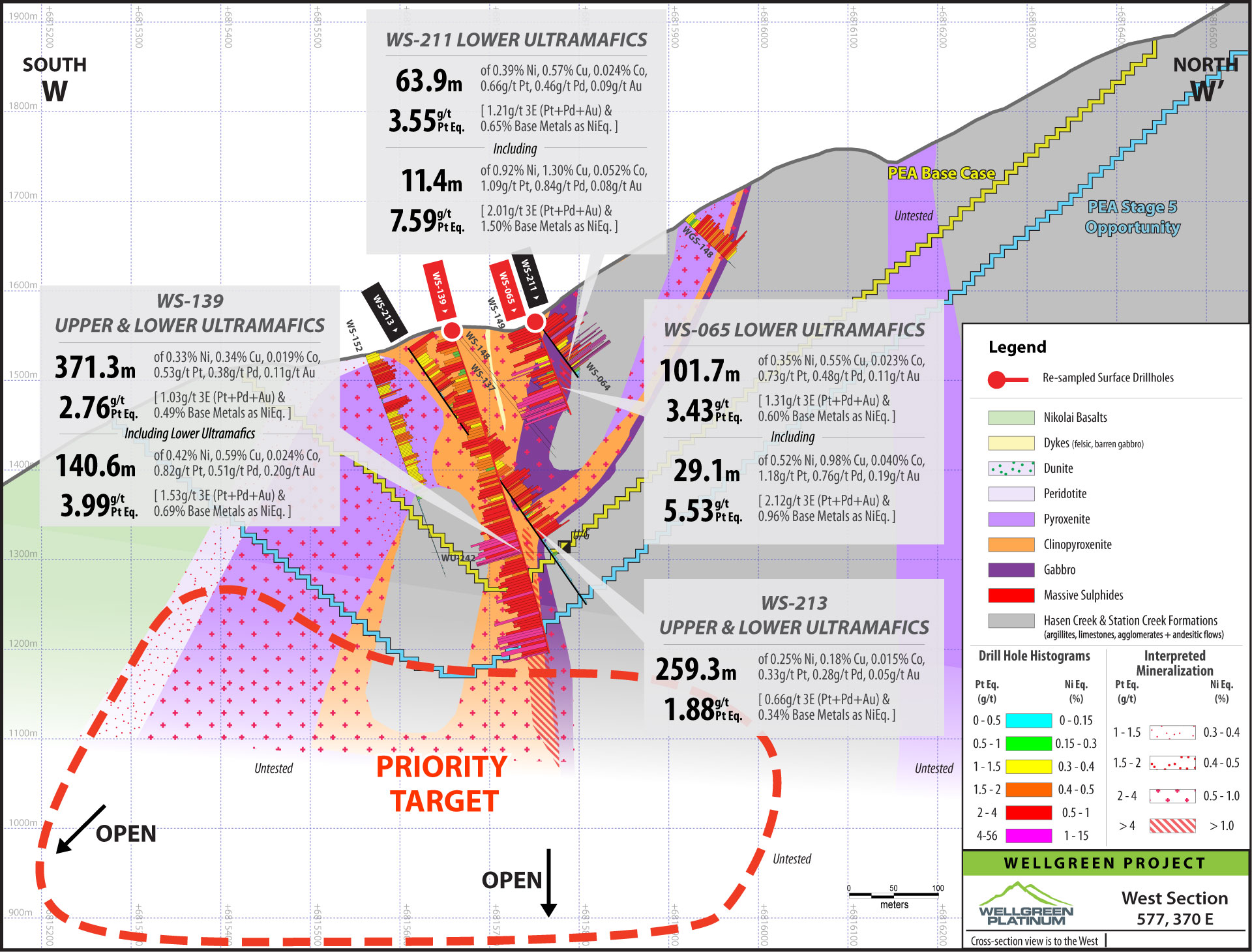

West 577370e

West 577370e

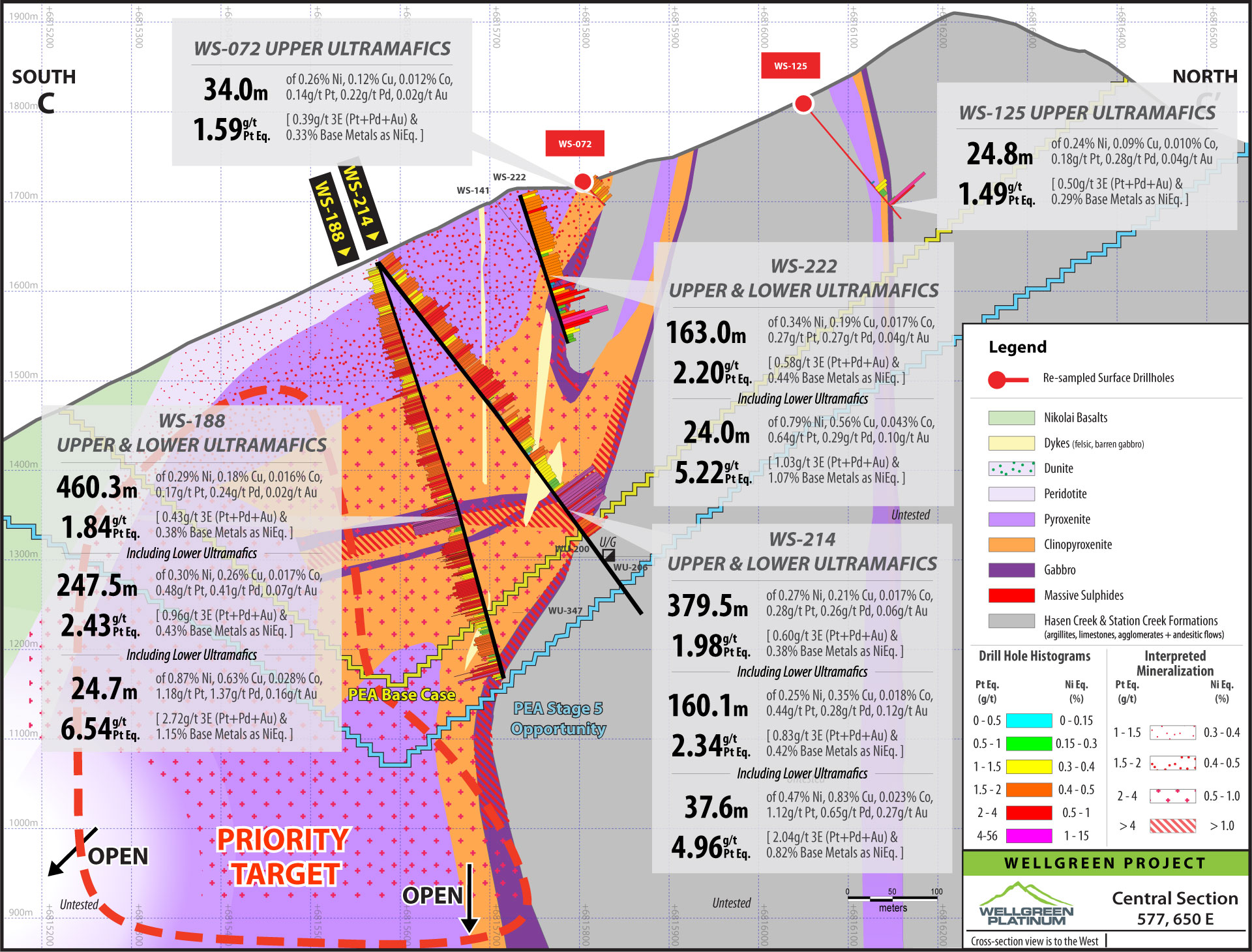

Central 577650e

Central 577650e

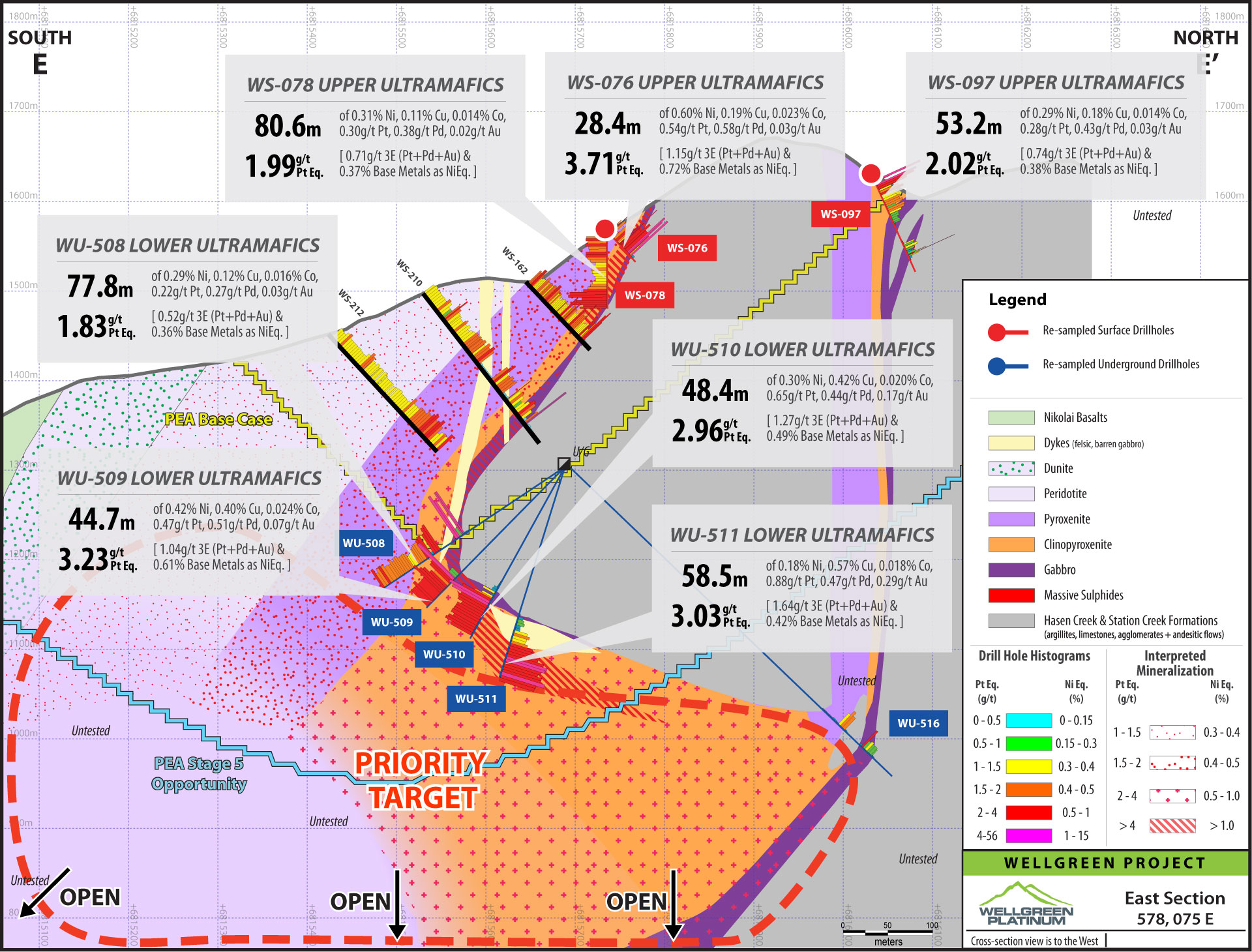

East 578075e

East 578075e

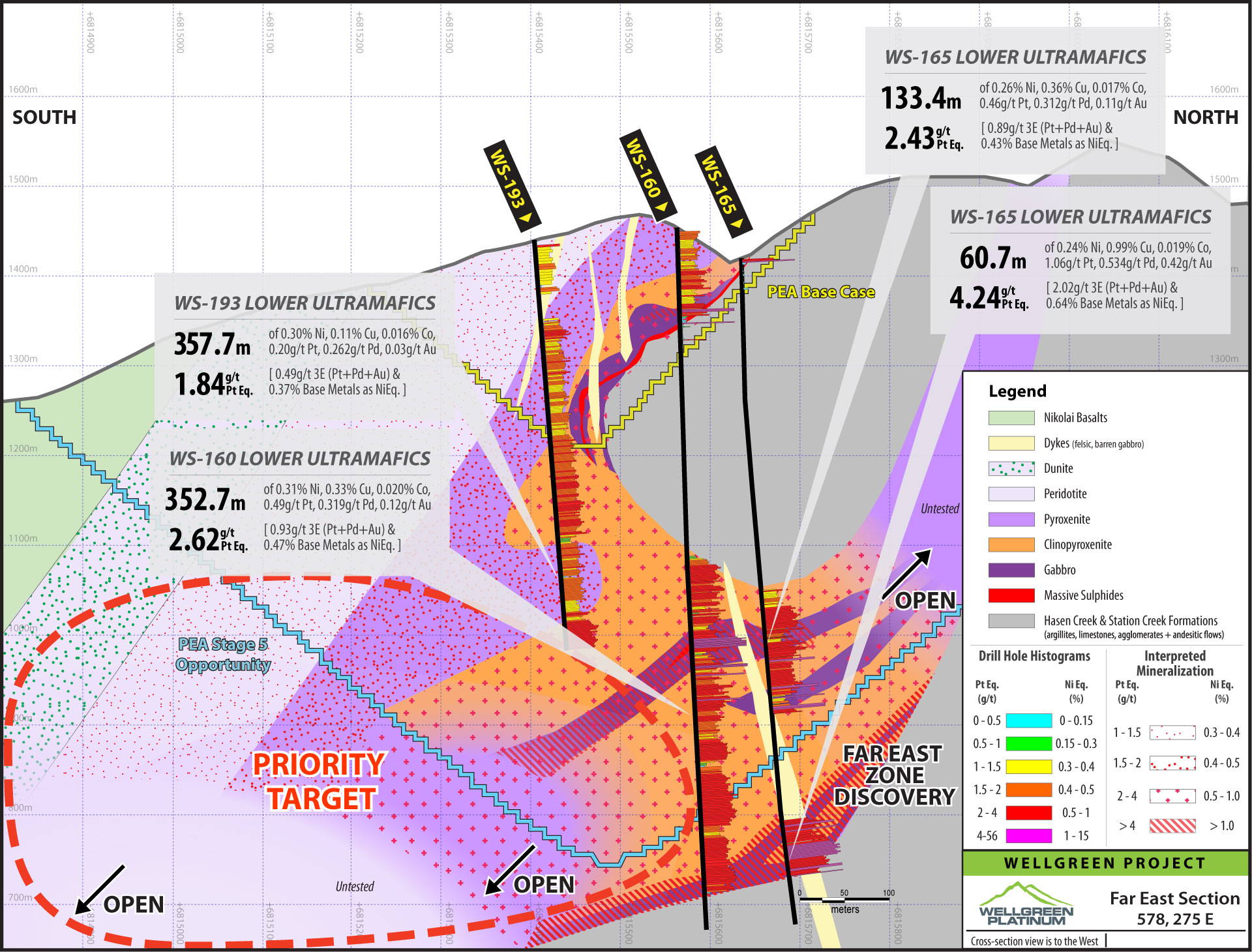

Fareast 578275e

Fareast 578275e

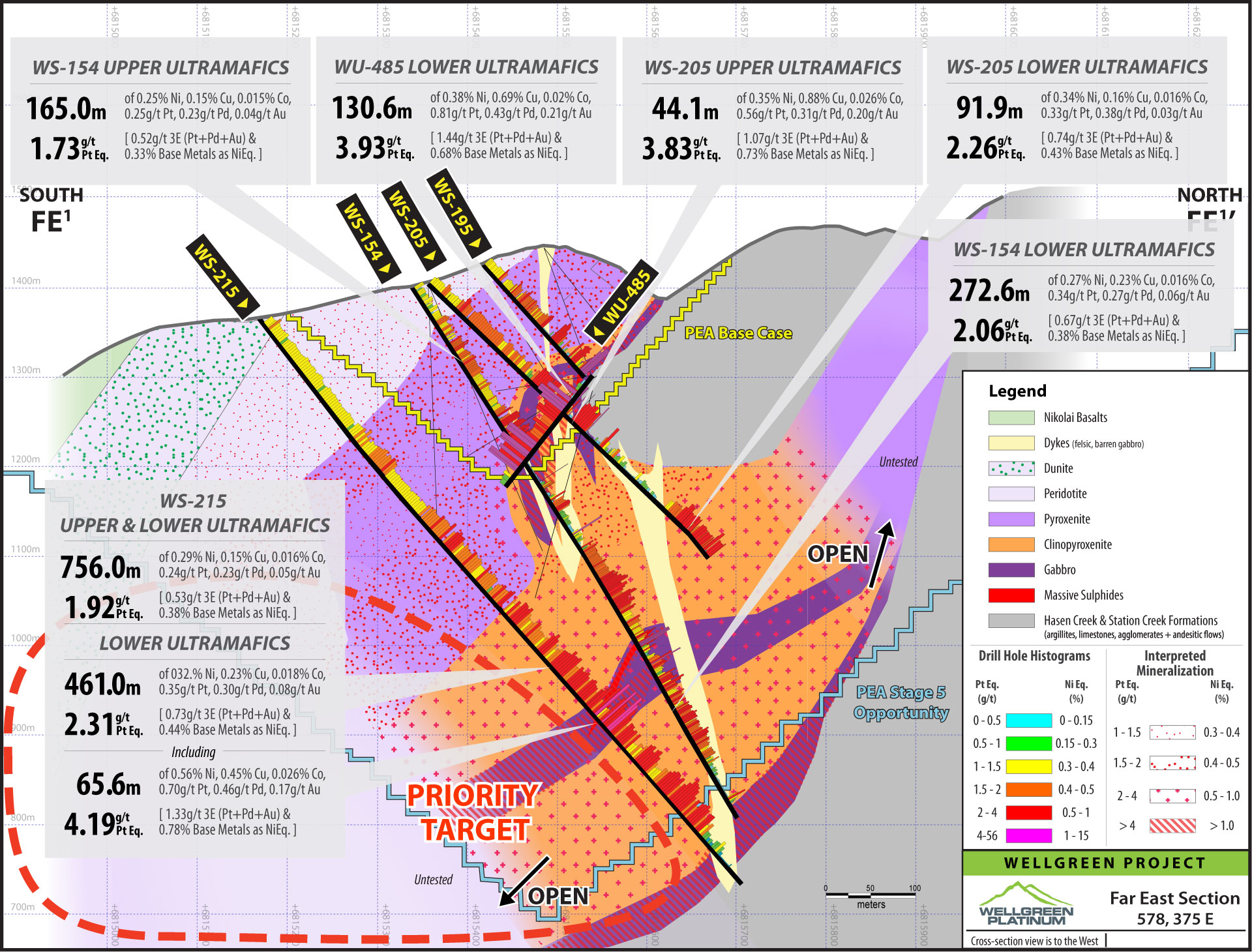

Fareast 578375e

Fareast 578375e

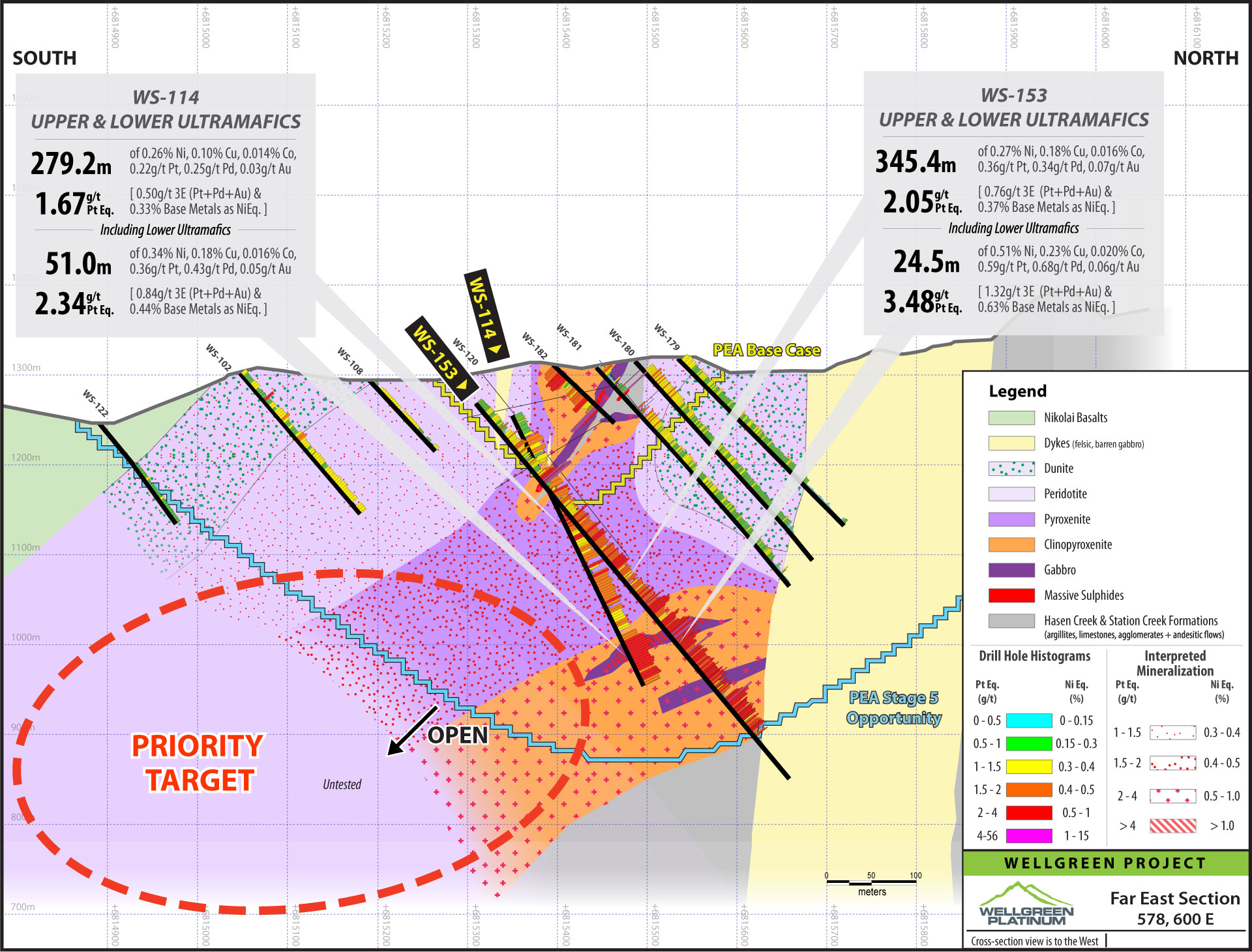

Fareast 578600e

Fareast 578600e

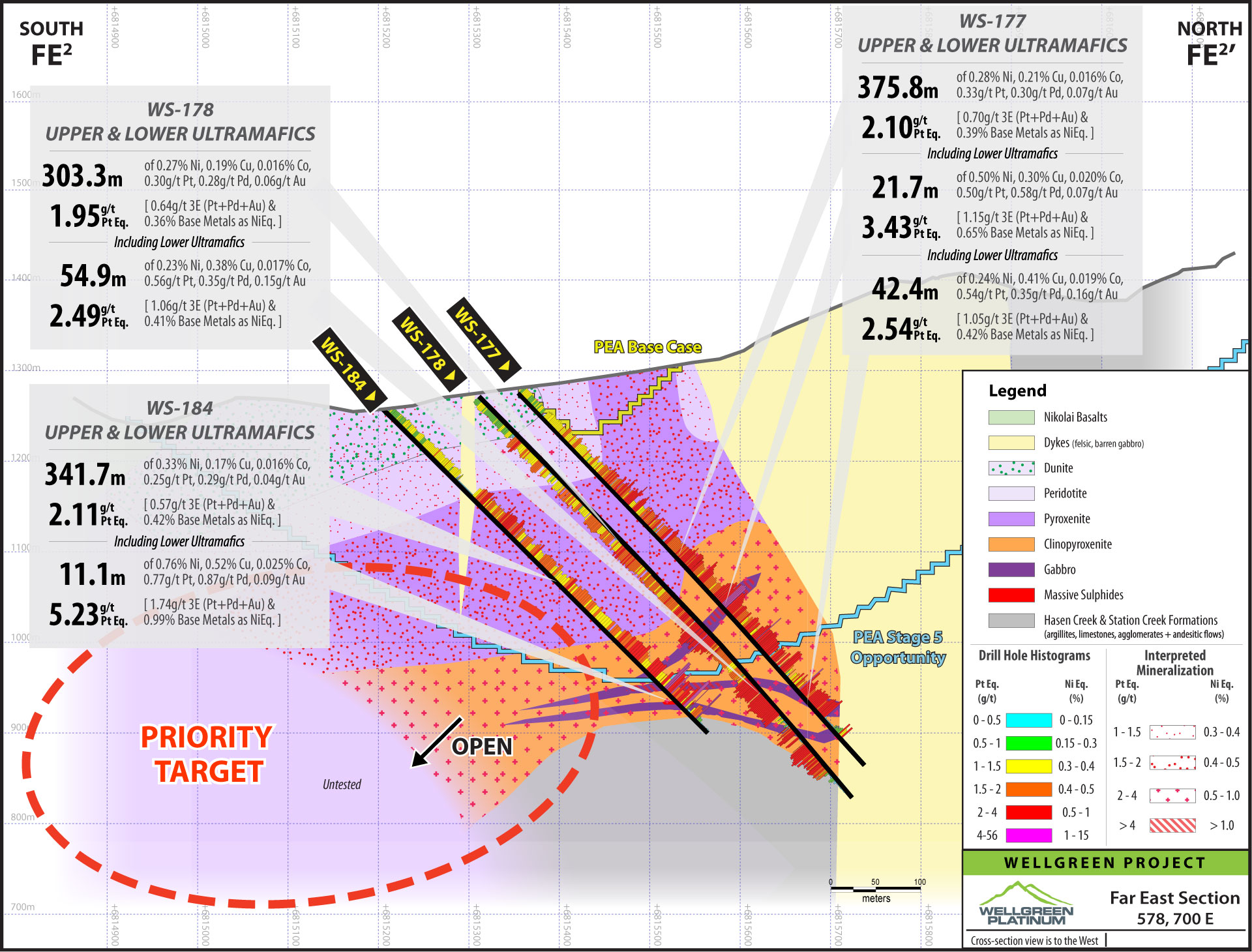

Fareast 578700e

Fareast 578700e

Quality Assurance and Quality Control: The technical information disclosed herein with respect to the Wellgreen geologic model and mineral resource update was prepared under the supervision of John Sagman, P.Eng., Wellgreen Platinum’s Senior Vice President and Chief Operating Officer, and Mr. Ron Simpson, P.Geo., of GeoSim Services Inc., each of whom is a “Qualified Person” as defined in NI 43-101. Investors should refer to the July 24, 2014 technical report for the Wellgreen project. In addition, Mr. Sagman has reviewed and approved the technical information contained on this website.
